Vertical Form Fill Seal Machine, DC-680/680L

Multi-lane vertical packaging machine for 4-side seal and shaped sachet packaging
Vertical Form Fill Seal Machine, DC-680/680L
  • Standard safety door (for safety production)
  • Film roll holder
  • Film roll holder
Vertical Form Fill Seal Machine
  • Bag length

    Max. 135mm, Max. 220mm

  • Packing speed

    30-60 bags/lane/min

  • Bag type

    4 side seal sachet, shaped sachet

The DC-680 (L) vertical form fill seal machine is a highly versatile piece of packaging equipment that can produce a wide range of products. It offers customers the flexibility to customize their production lines to meet specific needs, whether that means producing single or four-lane products, or choosing between small bags or unique, custom shapes.

This sealing machine is equipped with high-quality, internationally recognized electrical components and employs advanced design engineering to ensure optimal stability, adjustability, and durability. With these features, it is a reliable and stable option for long-term use, providing customers with improved productivity and performance.

Request a Quote

Moreover, the sealer's superior design ensures that the finished products have a high-grade, polished finish that is sure to impress customers. Whether you're a small business or a large corporation, the vertical form fill seal machine is an excellent investment that will help you achieve your production goals efficiently and effectively.

Specifications
Model DC-680 DC-680L
Machine dimensions (L×W×H) 2000×1700×2300mm 2000×1700×2600mm
Max. width of film roll 600mm 600mm
Bag length Max. 135mm Max. 220mm
Filling volume 1-8ml 1-8ml
Packing speed 30-60 bags/lane/min 30-60 bags/lane/min
Machine weight 2500kg 3200kg
Power supply AC380V/6kW
Bag type 4 side seal sachet, shaped sachet
Packaging material PET/AL/PE, NY/PE, PET/VMPET/PE, PET/PE, NY/VMPET/PE, PET/NY/PE, OPP/PE, OPP/AL/PE, OPP/VMPET/PE, etc.
Features
  • This cutting-edge VFFS machine is specifically crafted with the purpose of preventing any material from entering the sealed package. This will guarantee the dependability of the product packaging and reduce the amount of defective products.
  • This vertical packaging machine relies on oil pressure to adjust intricacies, making its operation a breeze. The seals it creates are smooth, and the designs are crisp - all working together to ensure a secure, quality seal.
  • This vertical packaging machine offers unparalleled reliability and performance due to its outstanding stability, sophisticated mechanical design, and remarkably low incidence of malfunction. The result is smooth, uninterrupted operation.
Details
  • Standard safety door (for safety production)Standard safety door (for safety production)

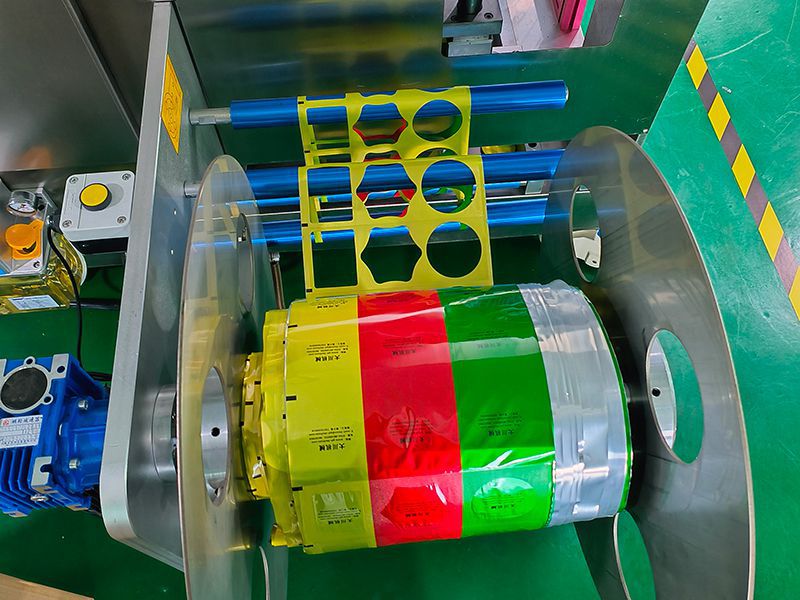

  • Film roll holderFilm roll holder

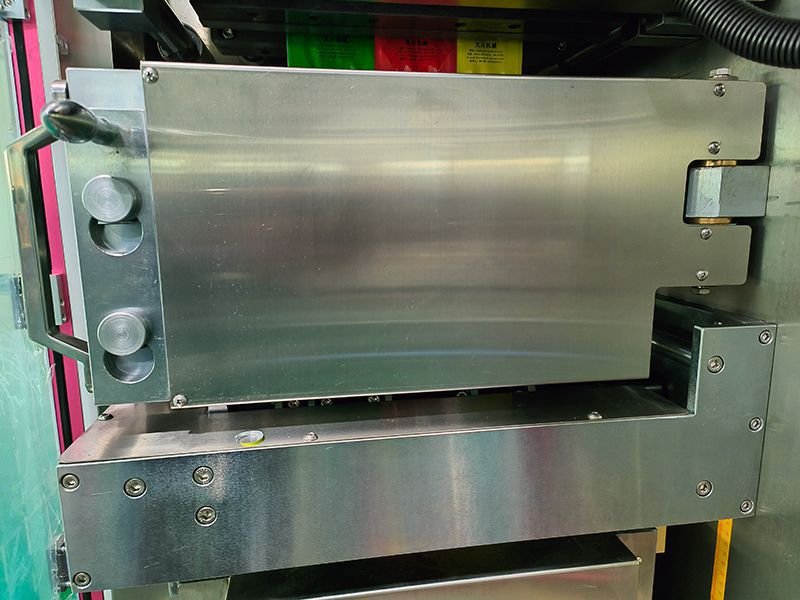

  • Heat sealing unitHeat sealing unit
  • Cold sealing unitCold sealing unit

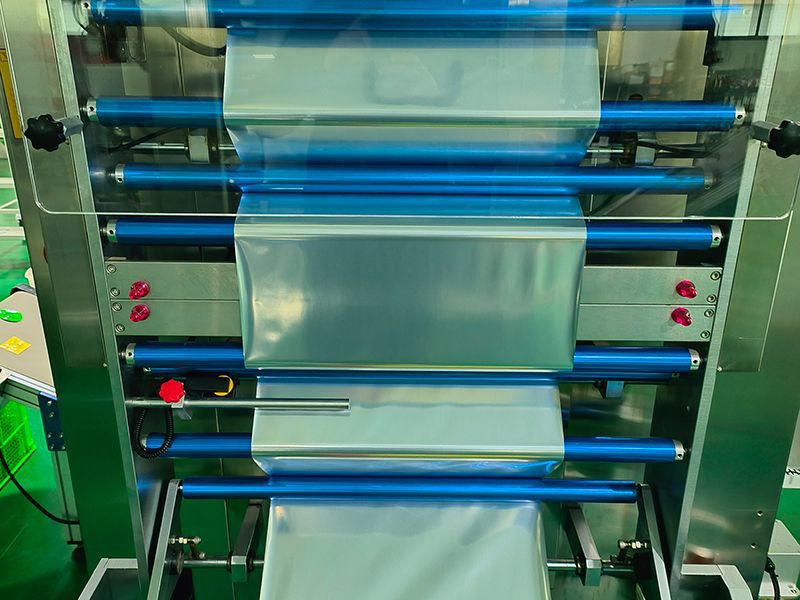

  • Film rolling and pulling wheelFilm rolling and pulling wheel
  • Shape cutterShape cutter
  • Finished product suction deviceFinished product suction device
  • Finished conveyor beltFinished conveyor belt
  • (Optional) lengthened and heightened conveyor belt(Optional) lengthened and heightened conveyor belt
  • Waste film collection deviceWaste film collection device
  • English PLC operation interface and temperature control tableEnglish PLC operation interface and temperature control table
  • Viscous liquid and cream feeding systemViscous liquid and cream feeding system
  • Liquid magnetic pump feeding deviceLiquid magnetic pump feeding device

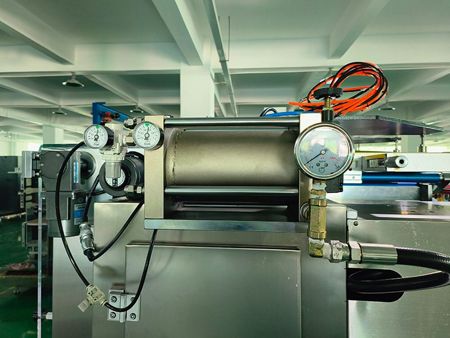

  • Oil pressure unitOil pressure unit
